D-LINK Switch/5xF+ Gigabit ENet IEE 802.3x

Forsiden Netværksudstyr Switche D-LINK Switch/5xF+ Gigabit ENet IEE 802.3x
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)
D-LINK Switch/ 5xF+ Gigabit ENet IEE  802.3x (DGS-105/E)

D-LINK Switch/5xF+ Gigabit ENet IEE 802.3x

Varenr.:
DGS-105/E
EAN:
0790069368226
Ekspertanmeldelser: 3 anmeldelser
  • Produkt Ethernet
  • Porte 5
  • Hastighed 2Gbps
190,-
237,50 inkl. moms
På fjernlager
Beskrivelse

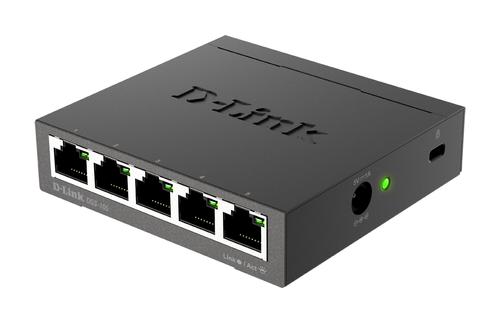

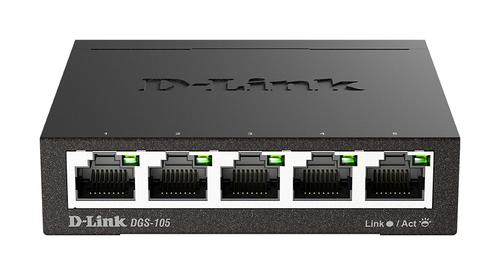

DGS-105 5 Port Gigabit Switch

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105 5 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with bi-color LED indicators per port to quickly distinguish link status. The switch features IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch features a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.

The DGS-105 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these innovative features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

Environmentally Friendly
The DGS-105 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Specifications
Switching Fabric
1.0 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (half duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (half duplex)
Protocol
CSMA/CD
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity
Power
Transmission Method
Store-and-forward
MAC Address Table
2K
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
384 KBytes per device
Jumbo Frames
2047 Bytes
QoS
2 Queues, strict mode
DC Input
External 5 V/1 A Level "V" Power Adapter
Data Transfer Rates
Power On (Standby):
DC input: 0.5 watts
AC input: 1.0 watts
Maximum:
DC input: 2.01 watts
AC input: 3.10 watts
Heat Dissipation
Power On (Standby) AC input: 3.41 BTU/h
Maximum DC input: 6.854 BTU/h
MTBF
495,709 hours
Operating Temperature
32° to 122°F (0° to 50°C)
Storage Temperature
14° to 158°F (-10° to 70°C)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
Dimensions
3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm)
Weight
9.35 ounces (265 grams)
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
Specifications
Warranty
Limited Lifetime1
